John Deere Model B Restoration
Here are some pictures of a friends John Deere him & I restored. I don’t have any pictures of it after the rebuild, but it turned out nice. We rebuilt the engine, gave it a new paint job, and rewired it.

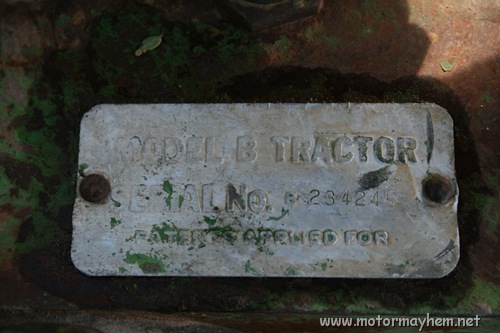

Serial Plate:

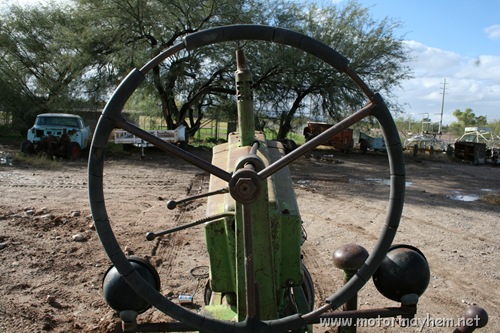

From the drivers seat:

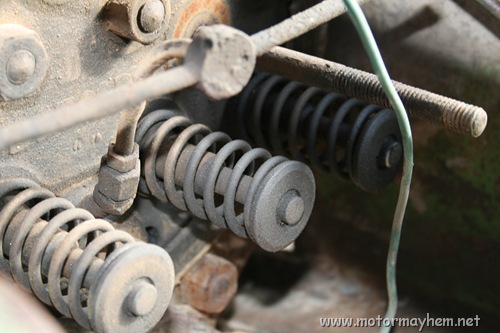

Under the valve cover (the tubes connected to the circular piece are oilers):

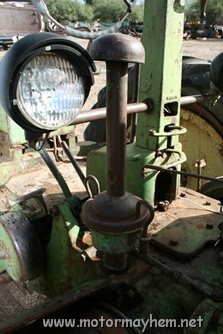

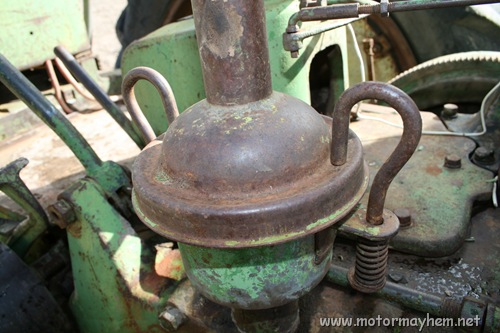

Crankcase Vent and headlight:
Crankcase Vent:

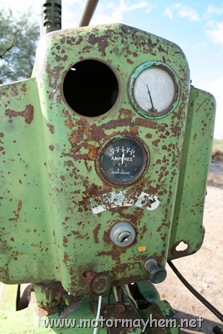

Dash:

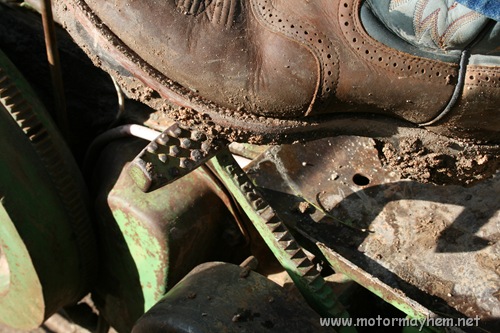

Brakes (independent left and right) notice notches; they allow the brake to be “set” for parking:
One of the many JD logos cast into the tractor:
PTO and hydraulic hookups on the rear:

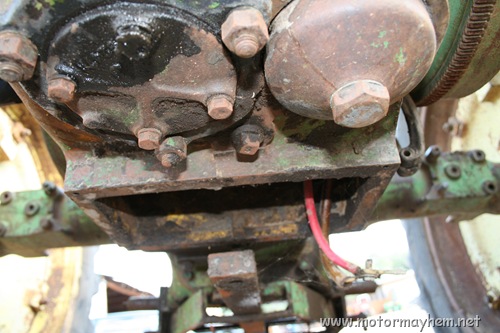

Under the 2-Cylinder:

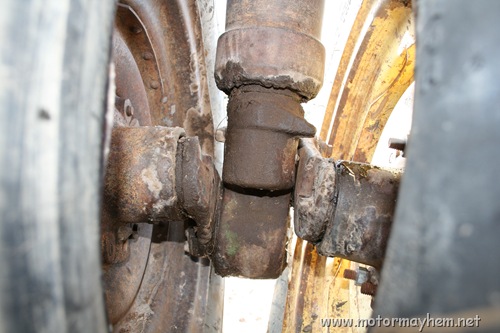

Rollomatic front suspension:
Tags: b, deere, equiptment, farm, green, john, model, old, tractor
Saturday, June 7th, 2008 at 20:05 • Builds • RSS 2.0 feed • leave a response or trackback
the lever just below…Is that a timing adjustment or what?
On the steering column there is a lever for choke and one for throttle. On the dash there is a headlight switch (pull out type).
–Miles
