Ford Model A Transmission Specifications

Gear Ratios:

  • 8.75:1 (Low)
  • 6.9:1 (Middle)
  • 1:1 (High)

Oil Capacity: 1 1/2 Pints

Clutch:

  • Pressure Plate Weight: 15 lbs
  • Clutch Disk Weight: 2 1/2 lbs
  • Clutch Pressure: 1100 lbs
  • Foot Pedal Pressure: 30 lbs
  • Clutch Diameter: 9″
  • Clutch Thickness: 9/64″
  • Clutch Pedal Free Play: 1″

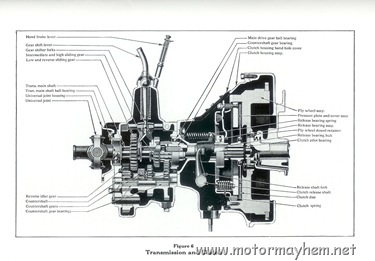

Transmission

Click Image to Enlarge

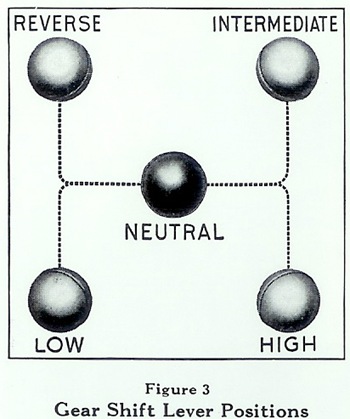

Shifting Sequence

*If you have more information you would like to share please comment it below or email me.*
